SKU alb-trperthacr-02
Triple Strand No-Wrench Screw Anchor - 10" Helix, 1-1/4" X 96" (MPN 1169)
- Used for securing up to 3 guy wires at a utility pole.
- Anchors are installed by simply turning anchor into ground. No Wrench Anchors may be driven by hand or with power equipment.
- Eye dimensions are the same as Anchor Rods.

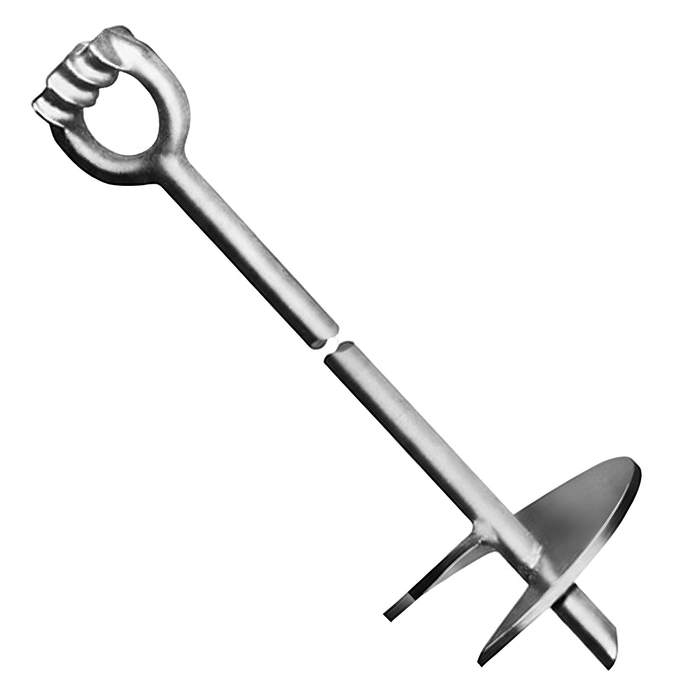

- Screw anchors consist of an unthreaded triple eye rod with an angled point, and a firmly welded helix.
- Hot dip galvanized to meet ASTM Specification A123.
- Holding strength per soil class for 1-1/4" rod:
- Soil Class 5: 13000 lbs
- Soil Class 6: 10000 lbs
- Soil Class 7: 7000 lbs
- Typical working torque is 2300 ft lbs.

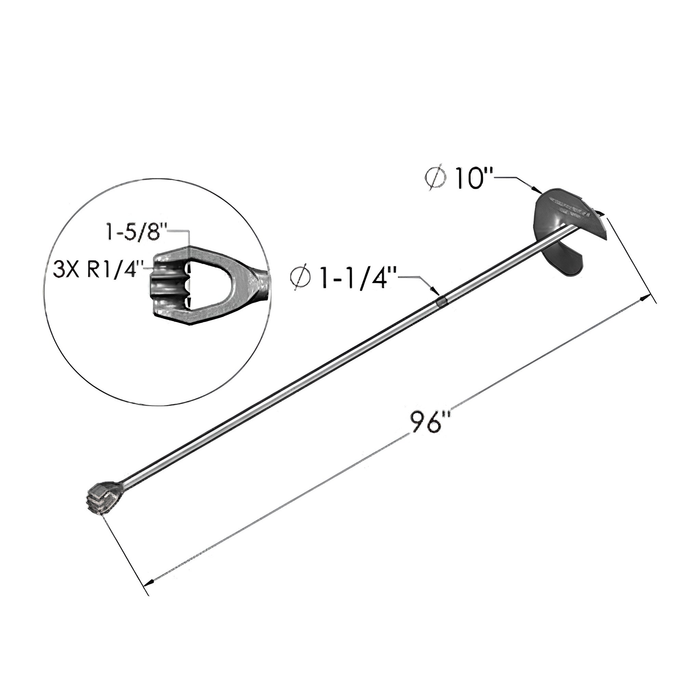

10" Helix, 1-1/4" X 96"
