SKU alb-trperthacr-01
Triple Strand No-Wrench Screw Anchor - 8" Helix, 1" X 66" (MPN 1167)
- Used for securing up to 3 guy wires at a utility pole.
- Anchors are installed by simply turning anchor into ground. No Wrench Anchors may be driven by hand or with power equipment.
- Eye dimensions are the same as Anchor Rods.

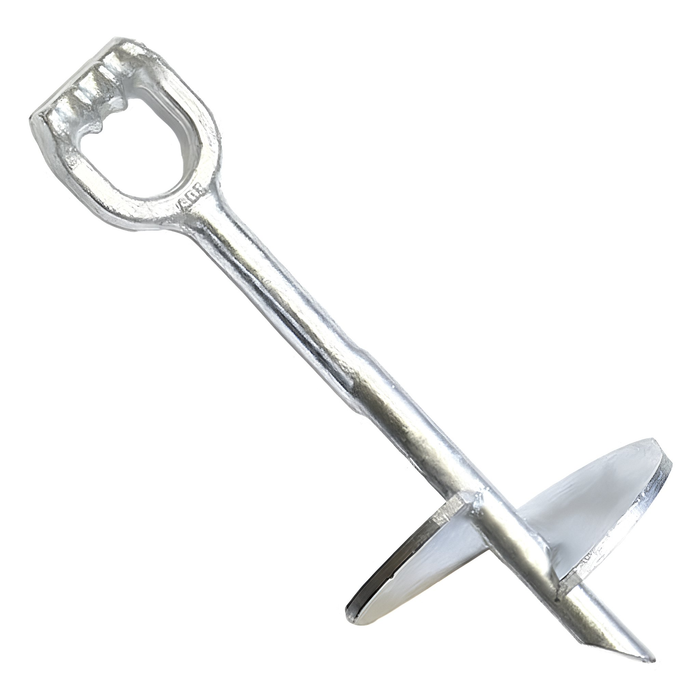

- Screw anchors consist of an unthreaded triple eye rod with an angled point, and a firmly welded helix.
- Hot dip galvanized to meet ASTM Specification A123.
- Holding strength per soil class for 1" rod:
- Soil Class 5: 11000 lbs
- Soil Class 6: 9000 lbs
- Soil Class 7: 6000 lbs
- Typical working torque is 1000 ft lbs.

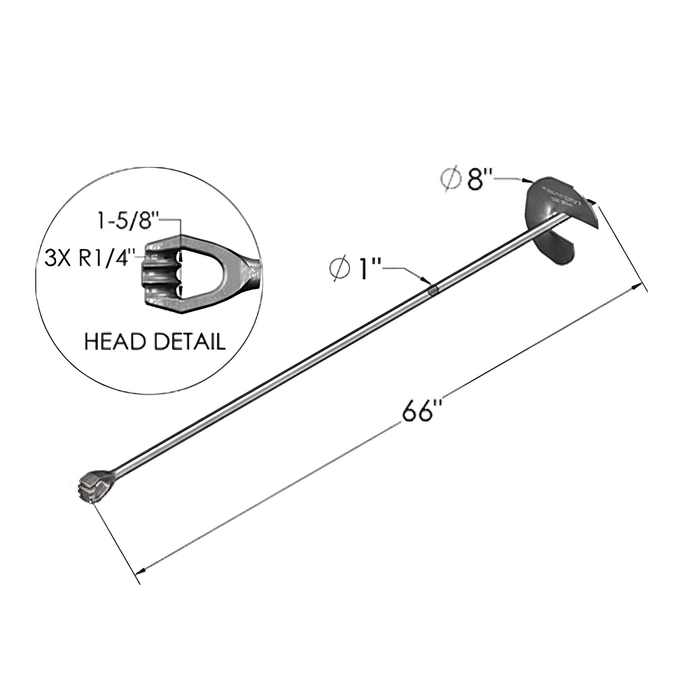

8" Helix, 1" X 66"
