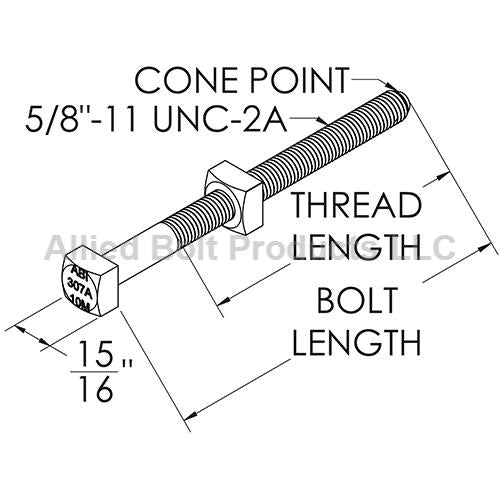

5/8" Square Head Machine Bolt with Nut (Cone Point) - 5/8" X 10" (MPN 8222)
SKU alb-sqhdbltcone-04

5/8" Square Head Machine Bolt with Nut (Cone Point) - 5/8" X 10" (MPN 8222)

$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
  • Used for fastening poleline hardware to crossarms, poles, and other structures.
  • Has a formed "cone point" to ease attachment of nut.
  • Allied Bolt marking (ABI) appears on the head of each bolt.
  • Hot dip galvanized to meet ASTM Specification F2329.
  • Supplied with attached square nut.
  • Minimum tensile strength: 13,550 lbf.
  • Recommended torque value: 73 ft lb.
  • Minimum thread length is 6".
  • Material conforms to ASTM specification A307.
  • Dimensions conform to ASME B18.2.1.
Flowers in Chania

Delivery time

5 to 7 Business Days
