SKU alb-comstndffbrkt-07

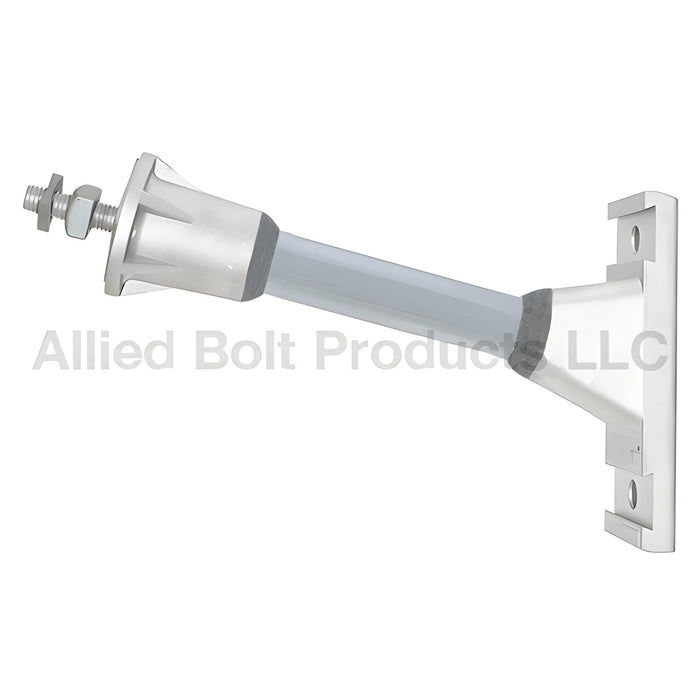

Fiberglass Communication Standoff Bracket - 36" (MPN 4876)

  • Standoff Brackets are used in aerial construction to provide a set distance from the Utility Poles for mounting Suspension Clamps.
  • Standoff Brackets are provided with a fixed 5/8"-11 x 2-5/8" Stud that includes a mating Square Nut, Lock Washer and Square Washer.
  • Both End Fitting and Pole Fitting are Casted from Ductile Iron.
  • Reinforced Epoxy Fiberglass Rod diameter is 1-1/2".
  • Mounting holes accommodate 5/8" Thru-Bolts and are spaced six inches apart.
  • Minimum Ultimate Vertical Load: 900 LBS (recommended maximum working load is 50% of minimum ultimate rating).
  • Minimum Ultimate Longitudinal Load: 500 LBS(recommended maximum working load is 50% of minimum ultimate rating).
  • Minimal Ultimate Transverse Load: 1,500 LBS (recommended maximum working load is 50% of minimum ultimate rating).
36"
